DL4XX's Throbbatron
G3YXM

Andy's version uses a pair of obsolete Semikron SKM121AR power modules. These are rated at 200V, 130A, 700W and have an rds-on of 18milli-Ohms at 80A.
Farnell have the similar APT20M11JVR for £65 each! Or the slightly less powerful STE110NA20 at £35.

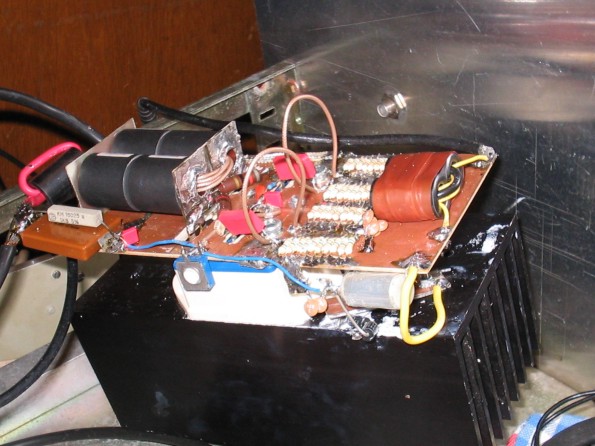

side view of amp module

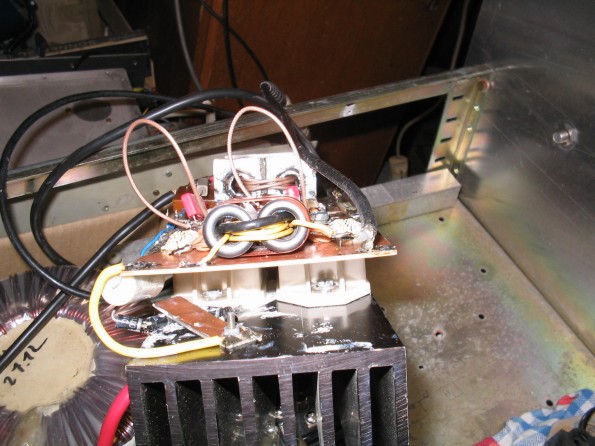

end view of the amp

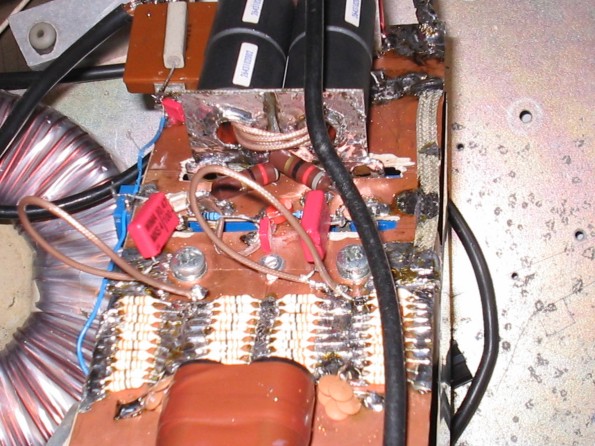

top view

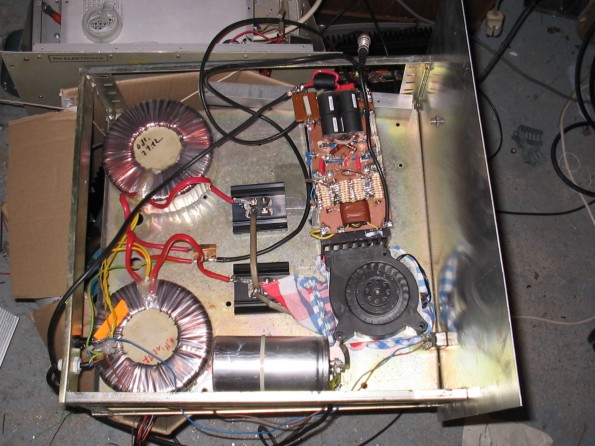

whole amp including PSU
